With nearly three decades of experience into handpump manufacturing and maintaining high quality engineered supplies in the Indian domestic market, we strive to serve the Internal export market of Africa & Asia with all your requirements as to:
We can cater to your customized needs as to medium or heavy weight full size hand pump assembly as per standards with mild-steel Connecting rods or stainless-steel SS Connecting rod where the quality of water is hard and corrosive.
Similarly; Cylinder body and its components are available in cast-iron CI Cylinder with Gun Metal components and SS Cylinder with SS Components.

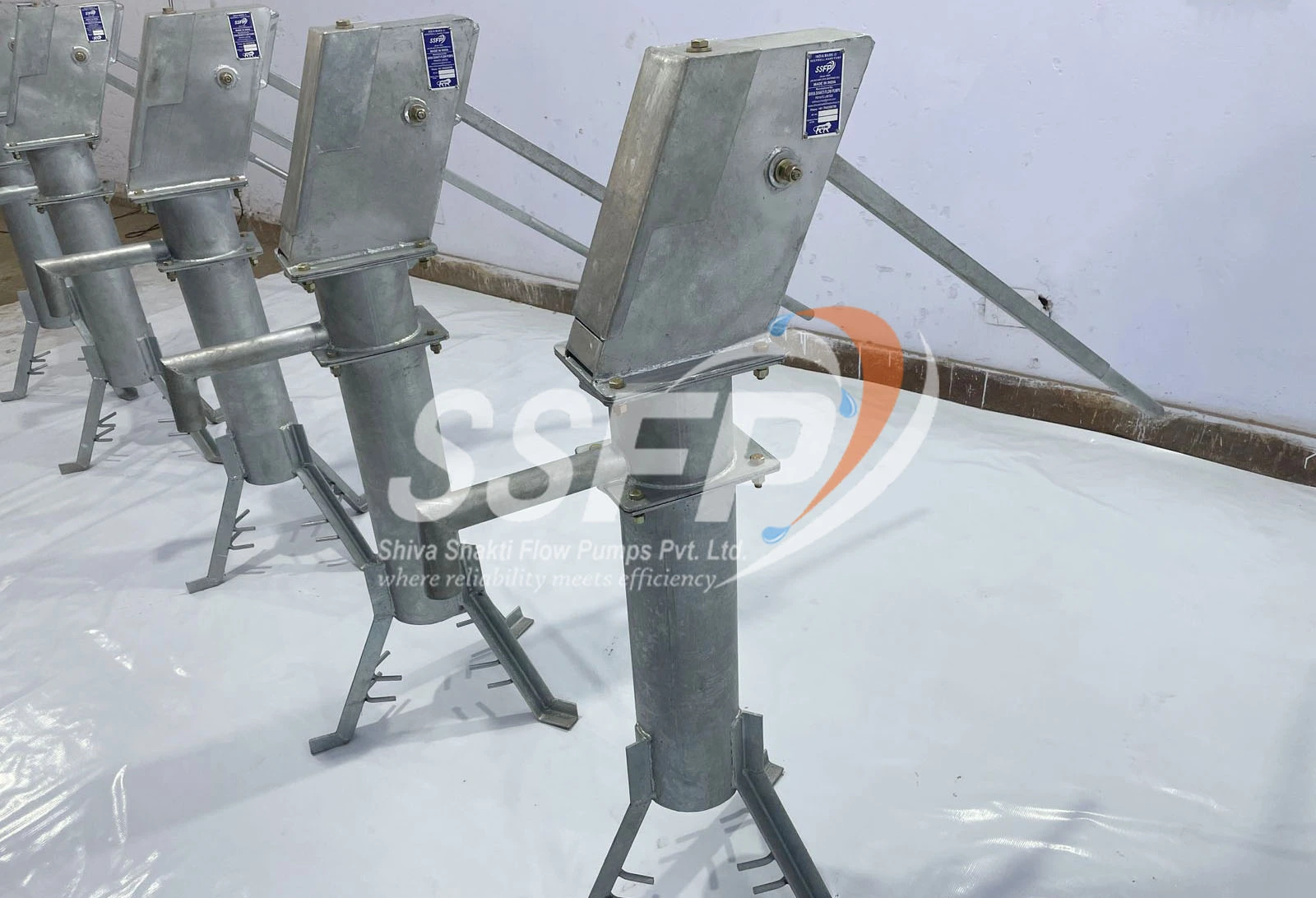

Hand Pump Set, Standard Deep Well Pump (SDWP) – INDIA MARK II Type:

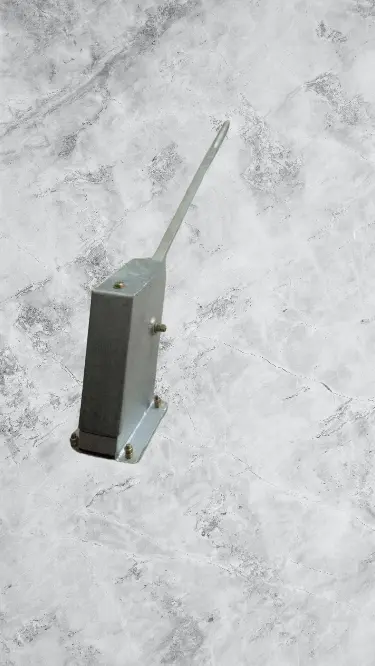

Head Assembly comprising of galvanized-iron GI head welded, 32mm Square handle assembly , Chain with coupling, SS Handle axle, Front cover, Third plate, Nuts & Bolts
3-leg Pedestal assembly / Telescope Pedestal / Square flange Pedestal
and Water tank -1.25″ socket.
Technicals – INDIA MARK-II/U2 PUMP
Static Water Level: 20 – 45 Meters
Stroke Length: 121 to 129 mm
Water Discharge: Minimum 15 Liters Per Minute
INDIA MARK III Hand Pump Type:
Been an improved & modified version of MKII – India MKIII VLOM (village level operation & maintenance) has much parts in common with difference as to the Cylinder body length and different lower and upper cap, pedestal stand length 615mm or 690mm plus the water tank has 65mm socket to accommodate the 65mm NB riser pipes.
Technicals – INDIA MARK-III PUMP
Static Water Level: Upto 30 Meters
Stroke Length: 121 to 129 mm
Water Discharge: Minimum 15 Liters Per Minute
ED – Extra Deep W
ell Hand Pump
As the name suggests; extra deep well hand pump extract water from plus 50 meters depth as compared to other India MKII handpump models.
Size of head assembly bracket is broader to accommodate the 40mm square handle with a different cylinder assembly – available both in CI Cylinder body with Gun Metal internal parts as well as complete SS Cylinder body with SS components in 304 grade.
Technicals – EXTRA DEEP WELL PUMP
Static Water Level: 45 – 90 Meters
Stroke Length: 96 to 104 mm
Water Discharge: Minimum 12 Liters Per Minute
